PROJECT 2
Pilot Retrofit Housing Project – RIBA Stage 3
The next project I worked on was another housing project. Unlike the previous one this was a retrofit project. This means the building already exists and the work will be done to the building to improve its environmental performance which will in turn review its elevation design. The aim of this project is to reduce the carbon emissions produced by the homes and also to improve the living standards. This will be achieved by installing external wall insulation and improving the airtightness of the building to reduce the amount of heat lost. The front entrance will also be redesigned to have a more modern look.

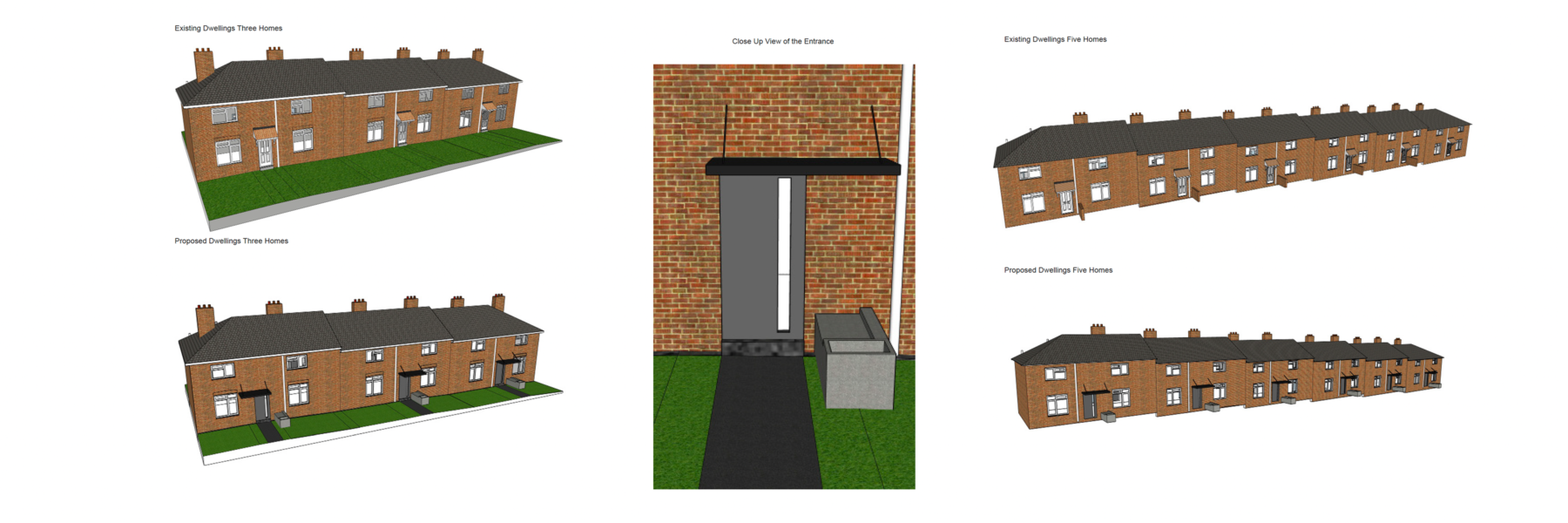

My work on this project was creating the 3D model of the homes in SketchUp. The model was created using the elevation and floor plans of the buildings, adding details such as windows, doors, porticos, chimneys, rainwater pipes, and flues. After that I found examples of modern porticos and used them as inspiration for creating a new design in SketchUp. Working on this project helped me to improve my SketchUp skills and gain a better understanding of the software. I also learned about retrofit projects, about different renders and claddings used such as brick slips and what it means to design with a ‘fabric first’ approach.
